FACTORY-DIRECT · SINCE 1992 · FENGHUA, NINGBO

Custom Solenoid Pilot Heads
Built to Your Drawing

We machine and assemble pilot heads in our own plant — 80 people, 15,000 m² of workshops, over 30 years of pilot-head work. Send a drawing, a sample or a specification and we quote it.

Send Your Drawing WhatsApp Us
OEM / ODM welcome Sampling from 1 pc Export documents supplied
Pilot head photoassets/img/hero-1.jpg
Coil / core photoassets/img/hero-2.jpg
Refrigeration valve photoassets/img/hero-3.jpg
Workshop photoassets/img/hero-4.jpg
1992Founded
80Employees
15,000m²Workshop area
200+Pilot head models
ISO 9001Quality system

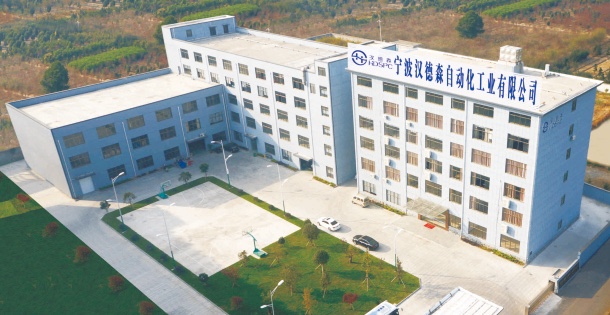

Factory / workshop photoassets/img/about.jpg
Since 1992Fenghua, Ningbo
About Us

A pilot-head factory, not a trading company

Ningbo Handsun Valve Automation Industry Co., Ltd. was founded in 1992 and is based in Fenghua, Ningbo — the pneumatic components belt of Zhejiang. Machining and assembly are done in our own workshops, so the drawing you send reaches the machine that cuts it.

宁波汉德森自动化工业有限公司

  • Custom pilot heads for solenoid valve makers — 2/2, 3/2 and 5/2 way
  • Pilot heads for pulse valves used on bag filters and dust collectors
  • Pilot heads for explosion-proof valves in hazardous-area duty
  • Refrigeration solenoid valves and coil / core assemblies
See what we make →
Our Products

Pilot heads and valves, made to order

Every item below is produced against a customer drawing, a sample or a written specification. Tell us the valve it goes into and we work back from there.

Custom Solenoid Pilot Headsassets/img/p-pilot.jpg
MADE TO DRAWING

Custom Solenoid Pilot Heads

2/2, 3/2 and 5/2 way pilot heads built to your drawing, sample or specification — AC or DC, with the coil, plunger tube and armature matched to the original.

Send your drawing →
Pulse-Valve Pilot Headsassets/img/p-pulse.jpg
DUST COLLECTION

Pulse-Valve Pilot Heads

Pilot heads for pulse valves on bag filters and dust collectors, made to the body dimensions and diaphragm travel of the valve you are building.

Send your drawing →
Explosion-Proof Pilot Headsassets/img/p-exproof.jpg
HAZARDOUS AREA

Explosion-Proof Pilot Heads

Pilot heads for valves used in hazardous areas, supplied to the mechanical and electrical requirements of explosion-proof valve makers.

Send your drawing →
Refrigeration Solenoid Valvesassets/img/p-refrig.jpg
COOLING SYSTEMS

Refrigeration Solenoid Valves

Two-way solenoid valves for refrigeration and ice-machine circuits — supplied complete, or machined to your drawing. See the H10, HDF and HVR specifications below.

See specifications →
Coil & Core Assembliesassets/img/p-coil.jpg
COMPONENTS

Coil & Core Assemblies

The coil, plunger tube and armature that go into a pilot head — wound and machined in our own plant to your voltage and connector.

Send your drawing →
OEM / ODM & Private Labelassets/img/p-oem.jpg
YOUR BRAND

OEM / ODM & Private Label

Your drawing, your part number, your packing. We quote the drawing, build the sample, then run the order under your brand.

Send your drawing →
Refrigeration Solenoid Valves

H10, HDF and HVR — direct-acting and diaphragm valves

Three series cover 1/4″–3/4″ threaded ports and Φ6–Φ22 solder connections, in direct-acting and diaphragm versions. Maximum working pressure is 3.5 MPa for the direct-acting models and 3.2 MPa for the diaphragm models, for use with R22, R134a, R404A · R507 and R407C. Nominal cooling capacity tables are available on request.

Technical data

H10 Series

ModelSizeConnectionActionFlow KvMax. working pressure MPaMax. OPD MPaMin. OPD MPa
H1020-21/4″ThreadedDirect-acting0.183.52.50
H1028-2Φ6SolderDirect-acting0.183.52.50
H1020-33/8″ThreadedDirect-acting0.233.52.50
H1028-3Φ10SolderDirect-acting0.233.52.50
H1064-33/8″ThreadedDiaphragm0.803.22.50.03
H1068-3Φ10SolderDiaphragm0.803.22.50.03
H1064-41/2″ThreadedDiaphragm0.803.22.50.03
H1068-4Φ12SolderDiaphragm0.803.22.50.03
H1070-41/2″ThreadedDiaphragm1.803.22.50.03
H1078-4Φ12SolderDiaphragm1.803.22.50.03
H1070-55/8″ThreadedDiaphragm1.803.22.50.03
H1078-5Φ16SolderDiaphragm1.803.22.50.03
H1078-6Φ19SolderDiaphragm1.803.22.50.03
H1090-63/4″ThreadedDiaphragm2.503.22.50.03
H1098-6Φ19SolderDiaphragm2.503.22.50.03
H1098-7Φ22SolderDiaphragm2.503.22.50.03

HDF Series

ModelSizeConnectionActionFlow KvMax. working pressure MPaMax. OPD MPaMin. OPD MPa
HDF21/4″ThreadedDirect-acting0.183.52.50
HDF2Φ6SolderDirect-acting0.183.52.50
HDF33/8″ThreadedDirect-acting0.233.52.50
HDF3Φ10SolderDirect-acting0.233.52.50
HDF63/8″ThreadedDiaphragm0.803.22.50.03
HDF6Φ10SolderDiaphragm0.803.22.50.03
HDF61/2″ThreadedDiaphragm0.803.22.50.03
HDF6Φ12SolderDiaphragm0.803.22.50.03
HDF101/2″ThreadedDiaphragm1.803.22.50.03
HDF10Φ12SolderDiaphragm1.803.22.50.03
HDF105/8″ThreadedDiaphragm1.803.22.50.03
HDF10Φ16SolderDiaphragm1.803.22.50.03
HDF10Φ19SolderDiaphragm1.803.22.50.03
HDF153/4″ThreadedDiaphragm2.503.22.50.03
HDF15Φ19SolderDiaphragm2.503.22.50.03
HDF15Φ22SolderDiaphragm2.503.22.50.03
HDF15Φ28SolderDiaphragm2.503.22.50.03

HVR Series

ModelSizeConnectionActionFlow KvMax. working pressure MPaMax. OPD MPaMin. OPD MPa
HVR21/4″ThreadedDirect-acting0.183.52.50
HVR2Φ6SolderDirect-acting0.183.52.50
HVR33/8″ThreadedDirect-acting0.233.52.50
HVR3Φ10SolderDirect-acting0.233.52.50
HVR63/8″ThreadedDiaphragm0.803.22.50.03
HVR6Φ10SolderDiaphragm0.803.22.50.03
HVR6-OR3/8″Threaded (O-ring)Diaphragm0.803.22.50.03
HVR61/2″ThreadedDiaphragm0.803.22.50.03
HVR6Φ12SolderDiaphragm0.803.22.50.03
HVR101/2″ThreadedDiaphragm1.803.22.50.03
HVR10Φ12SolderDiaphragm1.803.22.50.03
HVR105/8″ThreadedDiaphragm1.803.22.50.03
HVR10Φ16SolderDiaphragm1.803.22.50.03
HVR10Φ19SolderDiaphragm1.803.22.50.03
HVR153/4″ThreadedDiaphragm2.503.22.50.03
HVR15Φ19SolderDiaphragm2.503.22.50.03
HVR15Φ22SolderDiaphragm2.503.22.50.03
HVR15Φ28SolderDiaphragm2.503.22.50.03

Outline dimensions & weight

H10 Series

ModelSizeConnectionABCφGLThread MWeight g
H1020-21/4″Threaded8614.511.6φ26577/16-20UNF426
H1028-2Φ6Solder8614.5—φ26——399
H1020-33/8″Threaded8614.512φ26595/8-18UNF461
H1028-3Φ10Solder8614.5—φ26——417
H1020-3-OR3/8″Threaded (O-ring)8614.5—φ26——400
H1064-33/8″Threaded8918.311.6φ31675/8-18UNF530
H1068-3Φ10Solder8918.3—φ31——476
H1064-3-OR3/8″Threaded (O-ring)8918.312.8φ3168.65/8-18UNF470
H1064-41/2″Threaded8918.315.8φ31743/4-16UNF547
H1068-4Φ12Solder8918.3—φ31——483
H1070-41/2″Threaded9119.715.8φ4587.33/4-16UNF685
H1078-4Φ12Solder9119.7—φ45——624
H1070-55/8″Threaded9119.718φ45927/8-14UNF717
H1078-5Φ16Solder9119.7—φ45——659
H1078-6Φ19Solder9119.7—φ45——650
H1090-63/4″Threaded10528.219φ5297.31-1/16-14UNF974
H1098-6Φ19Solder10528.2—φ52——836
H1098-7Φ22Solder10528.2—φ52——859

HDF Series

ModelSizeConnectionABCφGLThread MWeight g
HDF63/8″Threaded8618.311.6φ31675/8-18UNF626
HDF6Φ10Solder8618.3—φ31——571
HDF-OR3/8″Threaded (O-ring)8618.312.8φ3168.65/8-18UNF565
HDF61/2″Threaded8618.315.8φ31743/4-16UNF647
HDF6Φ12Solder8618.3—φ31——579
HDF101/2″Threaded9019.715.8φ4587.33/4-16UNF707
HDF10Φ12Solder9019.7—φ45——733
HDF105/8″Threaded9019.718φ45927/8-14UNF812
HDF10Φ16Solder9019.7—φ45——736
HDF153/4″Threaded10328.219φ5297.31-1/16-14UNF1060
HDF15Φ19Solder10328.2—φ52——921
HDF15Φ22Solder10328.2—φ52——967

HVR Series

ModelSizeConnectionABCφGLThread MWeight g
HVR63/8″Threaded9518.311.6φ31675/8-18UNF703
HVR6Φ10Solder9518.3—φ31——654
HVR6-OR3/8″Threaded (O-ring)9518.312.8φ3168.65/8-18UNF642
HVR61/2″Threaded9518.315.8φ31743/4-16UNF724
HVR101/2″Threaded9819.715.8φ4587.33/4-16UNF849
HVR105/8″Threaded9819.718φ45927/8-14UNF885
HVR10Φ16Solder9819.7—φ45——803
HVR10Φ19Solder9819.7—φ45——808
HVR153/4″Threaded11128.219φ5297.31-1/16-14UNF1142
HVR15Φ19Solder11128.2—φ52——1001
HVR15Φ22Solder11128.2—φ52——1027

Specifications are transcribed from our published catalogue; please confirm dimensions on the drawing before ordering.

Request the refrigeration valve datasheet
Customisation

From your drawing to a production run

Most of what we ship does not exist in a catalogue yet. The route is short and predictable.

1 · Send the drawing or sample

PDF, DWG, STEP or simply photos with dimensions — plus the valve it fits, voltage, port, seal material and target quantity.

2 · Quotation and sample

We quote with the tooling cost included, then machine a sample for your approval. Sampling takes about one month.

3 · Production and shipping

Production runs about one month after sample approval, with export packing and documents prepared for your forwarder or ours.

MOQ — negotiablePilot quantities welcome
Sampling — about 1 monthNew tooling included
Production — about 1 monthCounted after sample approval
Factory & Quality

Machining under our own roof

Turning, milling and assembly all happen in-house, which is what keeps a custom pilot head affordable at pilot quantities and repeatable at production quantities.

Founded1992
Employees80
Site / building area14 mu · 15,000 m²
Main equipmentSwiss-type CNC lathes, machining centres, CNC lathes
InspectionSample approved before every production run
LocationFenghua District, Ningbo, Zhejiang
Swiss-type CNC lathe Machining centre CNC lathe In-house assembly Factory tour / video call on request
Workshop / equipment photoassets/img/about.jpg
Why Handsun

What a valve maker gets from us

01

Factory-direct since 1992

You deal with the plant that machines the part. No middle layer in the price, no middle layer in the answer when something needs changing.

02

Built to your drawing

Drawing, sample or specification — including the coil, plunger tube and armature, matched to the original you are replacing.

03

Export-ready paperwork

Commercial invoice, packing list, certificates and shipping marks as your forwarder needs them. English quotation, usually within 24 hours.

Ningbo Handsun Valve Automation Industry Co., Ltd.

宁波汉德森自动化工业有限公司

Contact personMr. Mao Xudong — General Manager
Mobile / WhatsApp+86 137 7723 5959
Tel+86 574 8887 0268
Sales email[email protected]
General[email protected]
AddressNo. 77 Fengling North Road, Xiaowangmiao Street, Fenghua District, Ningbo, Zhejiang, China

Send a drawing, get a price

Attach a PDF, a STEP file or just photos with dimensions. Tell us what the valve does and how many you need.

  • Quotation usually within 24 hours
  • Samples and tooling quoted up front
  • MOQ negotiable for first orders
  • English or Chinese, your choice
